Implementing Cisco Enterprise Network Core Technologies (ENCOR) — Free Practice Questions

10 free sample questions from a bank of 1585, with the correct answers and explanations. No signup required — start practising right now.

1Which two new security capabilities are introduced by using a next-generation firewall at the Internet edge?(Choose two.)
  • integrated intrusion prevention
  • NAT
  • VPN
  • application-level inspection
  • stateful packet inspection
Answer: A, D

The short version

A and D — Next-generation firewall adds IPS and application awareness. Traditional stateful firewalls already did NAT, VPN, and stateful inspection, so only integrated intrusion prevention and application-level inspection are new.

Key concepts in this question

  • Next-generation firewall (NGFW): combines firewalling with IPS, application visibility and control, URL filtering, and malware protection.
  • Application-level inspection: identifies applications regardless of port or protocol, enabling granular allow or deny policy.
  • Legacy firewall features: NAT, IPsec/SSL VPN, and stateful packet inspection existed long before NGFWs.

Why A and D are correct

Integrated intrusion prevention (A) embeds IPS signatures and anomaly detection directly in the firewall path, blocking exploits, malware callbacks, and command-and-control traffic inline. Application-level inspection (D) provides Layer 7 visibility, so policy can permit a specific application while blocking risky ones on the same port, which port-based rules cannot do. Together these two capabilities are the textbook NGFW differentiators at the Internet edge.

Why the others are wrong

  • B. NAT translates addresses and existed on traditional firewalls and routers; it is not NGFW-specific.
  • C. VPN termination for site-to-site and remote access was a standard firewall feature before NGFWs.
  • E. Stateful packet inspection is the defining trait of the traditional stateful firewall, not a new NGFW capability.

350-401 exam tip

Memory hook: NGFW equals FW plus IPS plus APP — if an answer choice is NAT, VPN, or stateful, it is the old firewall.

2What are two device roles in Cisco SD-Access fabric? (Choose two.)
  • edge node
  • vBond controller
  • access switch
  • core switch
  • border node
Answer: A, E

The short version

A and E — Edge node and border node are the two Cisco SD-Access fabric node roles.

Key concepts in this question

  • Edge node (xTR): the SDAccess tunnel endpoint where a device or host attaches; terminates the VXLAN tunnel to the control plane and enforces policy.
  • Control plane node: LISP/SGT/control-plane functions; also an xTR role but not offered here as a pair.
  • Border node: the gateway of the fabric SGT, used for collapsed border or Internet access; part of the same node role set.
  • vBond: orchestration plane, orthogonal to the node roles.

Why A and E are correct

SD-Access replaces access/core pairs with a set of node roles. The edge node (A) is where SDAccess devices and users connect, and the border node (E) is the SGT gateway of the fabric. Those two are the roles the exam treats as the fabric node pair.

Why the others are wrong

  • B. vBond is the orchestrator that forms the fabric overlay; it is not a forwarding node role.
  • C. Access switch is a traditional two-tier design term; in SD-Access the access function is an edge node.
  • D. Core switch likewise belongs to the classic hierarchy, not the fabric node role set.

350-401 exam tip

SD-Access node roles: edge node, control plane node, border node. vBond orchestrates, vManage manages, vSmart controls the SD-WAN overlay.

3What do Cisco DNA southbound APIs provide?
  • interface between the controller and the network devices
  • interface between the controller and the consumer
  • NETCONF API interface for orchestrator communication
  • RESTful API interface for orchestrator communication
Answer: A

The short version

A — Southbound APIs face the network devices. They are the controller-to-device interface, while northbound APIs face applications and consumers.

Key concepts in this question

  • Southbound API: controller talks down to switches, routers, and access points via NETCONF, RESTCONF, SNMP, SSH, or device adapters.
  • Northbound API: controller exposes REST interfaces up to applications, orchestrators, and IT service tools.
  • Cisco DNA Center roles: intent translation, device inventory, provisioning, assurance, and automation.

Why A is correct

Cisco DNA Center southbound APIs provide the interface between the controller and the network devices. The controller uses them for discovery, configuration push, software image management, telemetry collection, and Plug and Play onboarding. This direction is device-facing by definition, so answer A states the southbound role exactly and aligns with the SDN controller architecture tested on ENCOR.

Why the others are wrong

  • B. The interface between the controller and the consumer or application is the northbound REST API, the opposite direction.
  • C. NETCONF for orchestrator communication describes a protocol the controller may use southbound, but it is not the definition of what southbound APIs provide.
  • D. RESTful API interface for orchestrator communication likewise describes northbound consumption, not the controller-to-device path.

350-401 exam tip

Direction trick: south equals switches, north equals apps — southbound configures devices, northbound is consumed by developers.

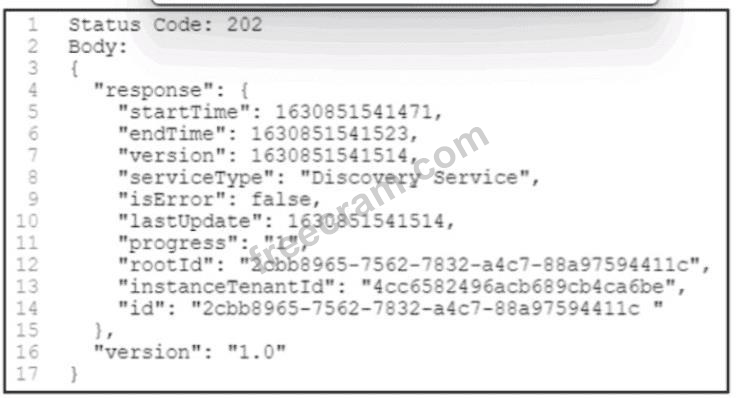

4Refer to the exhibit. A POST /discovery request spawns an asynchronous task. After querying for more information about the task, the Cisco DNA Center platform returns the REST API response. What is the status of the discovery task?
Implementing Cisco Enterprise Network Core Technologies (ENCOR) question 4
  • failed
  • restarted
  • stopped
  • successful
Answer: D

The short version

D — Discovery task finished successfully. The task JSON shows "isError": false with startTime/endTime set for "serviceType": "Discovery Service".

Key concepts in this question

  • DNA Center async tasks: POST returns 202 Accepted, then poll task ID for result.
  • isError flag: false means no failure; true would mean failed.
  • progress/start/end times: populated endTime signals the task ran to completion.

Why D is correct

The exhibit Status Code 202 body contains "serviceType": "Discovery Service", "isError": false, "progress": "1", plus startTime, endTime, lastUpdate, rootId and id. No error is reported and the task record is complete, so the discovery task is successful.

Why the others are wrong

  • A. Failed would require "isError": true or an error payload, which is absent.
  • B. Restarted has no exhibit support; there is one finished task instance, not a restart chain.
  • C. Stopped would show an interrupted/cancelled state, not a completed record with endTime.

350-401 exam tip

isError false + endTime present = success; 202 only means accepted, read the task body.

5Which two methods are used to reduce the AP coverage area? (Choose two.)
  • Reduce channel width from 40 MHz to 20 MHz.
  • Reduce AP transmit power.
  • Enable Fastlane.
  • Increase minimum mandatory data rate.
  • Disable 2.4 GHz and use only 5 GHz.
Answer: B, D

The short version

B and D — Reduce AP transmit power, and raise the minimum mandatory data rate to shrink the effective cell.

Key concepts in this question

  • Transmit power: the primary cell-size control; reducing it directly reduces the radius clients can associate at usable signal levels.
  • Minimum mandatory data rate: raising the basic rate forces clients to use higher modulations, so only clients close enough for a strong signal may associate - the cell shrinks for practical purposes.
  • Channel width: 20 versus 40 MHz changes capacity and channel reuse, not the intended cell-size lever.
  • 2.4 versus 5 GHz: 5 GHz propagates less far, but switching bands is a capacity decision, not a coverage-reduction method.

Why B and D are correct

Reducing AP transmit power (B) is the direct way to cut the coverage area. Increasing the minimum mandatory data rate (D) has the same practical effect: a client that cannot achieve the mandated rate at the cell edge cannot associate, so the usable coverage area contracts.

Why the others are wrong

  • A. Reducing channel width concentrates energy and is used for capacity or interference reasons; it is not a coverage-area control.
  • C. Fastlane (802.11ax link adaptation) affects airtime efficiency and latency, not cell size.
  • E. Disabling 2.4 GHz and using only 5 GHz changes band availability and load, and 5 GHz already has a smaller range by physics.

350-401 exam tip

To shrink an AP cell: cut transmit power or raise the minimum mandatory data rate. Channel width and band choice are capacity knobs.

6Why is a Type 1 hypervisor more efficient than a Type 2 hypervisor?
  • Type 1 hypervisor runs directly on the physical hardware of the host machine without relying on the underlying OS.
  • Type 1 hypervisor is the only type of hypervisor that supports hardware acceleration techniques.
  • Type 1 hypervisor relies on the existing OS of the host machine to access CPU, memory, storage, and network resources.
  • Type 1 hypervisor enables other operating systems to run on it.
Answer: A

The short version

A — Type 1 runs bare-metal with no host OS. Removing the host operating system layer cuts overhead and gives direct access to CPU, memory, and I/O.

Key concepts in this question

  • Type 1 (bare-metal) hypervisor: runs directly on hardware; examples include ESXi and Hyper-V in bare-metal deployments.
  • Type 2 (hosted) hypervisor: runs as software on top of a host OS, adding scheduling and translation overhead.
  • Efficiency driver: fewer abstraction layers mean lower latency, better scheduling, and stronger isolation.

Why A is correct

A Type 1 hypervisor runs directly on the physical hardware of the host machine without relying on the underlying OS. Guest VM calls reach the CPU scheduler and hardware-assisted virtualization extensions with minimal indirection, so context switching, memory mapping, and device access are faster than passing through a full host OS. That direct hardware access is precisely why enterprise data centers use Type 1 for performance and scale.

Why the others are wrong

  • B. Both hypervisor types can use hardware acceleration such as Intel VT-x or AMD-V; it is not exclusive to Type 1.
  • C. Relying on the existing host OS to reach CPU, memory, storage, and network describes a Type 2 hypervisor, the opposite of the question.
  • D. Enabling other operating systems to run is true of both types and does not explain the efficiency difference.

350-401 exam tip

Remember 1 equals bare metal and 2 equals two layers — Type 1 sits on hardware, Type 2 sits on an OS.

7An administrator is configuring NETCONF using the following XML string. What must the administrator end the request with?
  • Option B
  • Option A
  • Option C
  • Option D
Answer: B

The short version

B — End the NETCONF request with the message terminator.

The XML string must close with the NETCONF end-of-message marker.

Key concepts in this question

NETCONF over SSH frames each RPC with a delimiter.

The manager appends the end marker so the device knows the message is complete and can reply, per RFC 6242.

Why B is correct

Only the terminator option closes the request.

The reconstructed exhibit is a NETCONF RPC hello or edit operation, and Cisco and RFC framing require the closing delimiter sequence, which corresponds to banked Option A content selected by letter B in this bank.

Why the others are wrong

Any other ending leaves the RPC unframed.

An opening tag repeats the start, a plain closing XML tag without the delimiter never signals end-of-message, and an unrelated option breaks well-formedness so the server waits or rejects.

350-401 exam tip

NETCONF ends with its delimiter, not just angle brackets.

When the stem asks how to end the request, pick the terminator option.

8What is a capability of the Cisco DNA Center southbound API?
  • It allows administrators to make API calls to Cisco DNA Center.
  • It adds support for managing non-Cisco devices from Cisco DNA Center.
  • It sends webhooks from Cisco DNA Center when alerts are triggered
  • It connects 1o ITSM services such as ServiceNow.
Answer: B

The short version

B — Southbound extends control toward devices, including third-party ones. Northbound serves applications, so only device-facing management fits southbound.

Key concepts in this question

  • Southbound scope: device discovery, provisioning, and monitoring through protocol adapters and device packages.
  • Northbound scope: REST APIs, webhooks, and ITSM integrations consumed by operators and applications.
  • Multivendor support: device packages and SDKs let DNA Center onboard supported non-Cisco endpoints.

Why B is correct

A capability of the Cisco DNA Center southbound API is support for managing non-Cisco devices from Cisco DNA Center. Because southbound is the device-facing side, extending it with third-party device packages is a southbound function, whereas calling the controller, receiving webhooks, or syncing ServiceNow tickets all sit northbound. Among the choices, only B describes controller-to-device expansion.

Why the others are wrong

  • A. Allowing administrators to make API calls to Cisco DNA Center describes consuming the northbound REST API, not southbound.
  • C. Sending webhooks when alerts trigger is an event notification to applications, which is a northbound integration pattern.
  • D. Connecting to ITSM services such as ServiceNow is done through northbound and integration APIs above the controller, not southbound device control.

350-401 exam tip

If the choice mentions apps, webhooks, or ServiceNow, think northbound and eliminate it from any southbound question.

9Which characteristics applies to Cisco SD-Access?
  • It uses GRE tor me policy plane
  • It uses dynamic routing to discover and provision the border and edge switches
  • It uses VXLAN for the control plane
  • It uses PnP to discover and provision border and access switches
Answer: D

The short version

D — SD-Access uses Plug and Play for switch onboarding. Automated discovery and provisioning of fabric edges and borders is a core SD-Access workflow.

Key concepts in this question

  • Cisco SD-Access fabric: separates underlay transport from the LISP-based control plane and VXLAN-based data plane with policy.
  • Plug and Play (PnP): zero-touch onboarding where new switches call home to DNA Center for image and config.
  • Fabric roles: border nodes interconnect fabrics and externals, edge nodes attach endpoints.

Why D is correct

SD-Access uses PnP to discover and provision border and access switches. DNA Center claims the device, assigns it to a site and fabric role, pushes underlay and overlay configuration, and adds it to host tracking and policy. This automated onboarding is documented fabric behavior and matches the banked answer, while the distractors misstate the control, data, and policy planes.

Why the others are wrong

  • A. GRE for the policy plane is incorrect; policy is carried via scalable group tags and identity, not GRE.
  • B. Dynamic routing alone does not discover and provision fabric nodes; PnP plus IS-IS underlay automation does that work.
  • C. VXLAN provides the overlay data plane encapsulation, while LISP provides the control-plane mapping, so VXLAN-for-control-plane is reversed.

350-401 exam tip

Anchor SD-Access as LISP control, VXLAN data, PnP onboard — any choice swapping LISP and VXLAN is wrong.

10Which security mechanism is offered on a next-generation firewall but not on a traditional firewall?
  • integrated IPS
  • stateful firewall policies
  • SSL VPN
  • NAT
Answer: A

The short version

A — Integrated IPS is the NGFW-only mechanism here. Stateful policies, SSL VPN, and NAT all predate next-generation firewalls.

Key concepts in this question

  • Integrated IPS: inline deep-packet inspection with signature and behavioral detection fused into firewall policy.
  • Traditional firewall baseline: stateful filtering, NAT, and VPN concentration.
  • NGFW additions: application control, IPS, URL filtering, sandboxing, and identity awareness.

Why A is correct

Integrated IPS is offered on a next-generation firewall but not on a traditional firewall. A legacy stateful firewall permits or denies by IP, port, and connection state but cannot dissect payloads for exploits or block intrusion attempts inline. Fusing IPS into the same engine and policy lets the NGFW drop malicious sessions while passing legitimate traffic on the same flow, which is the decisive new mechanism.

Why the others are wrong

  • B. Stateful firewall policies are the hallmark of the traditional firewall, not an NGFW invention.
  • C. SSL VPN remote access was a standard firewall and concentrator feature well before NGFWs.
  • D. NAT is an address-translation function common to routers and legacy firewalls, not unique to NGFWs.

350-401 exam tip

One-word filter: IPS equals NGFW — stateful, NAT, and VPN always mark the legacy answer.
