300-115 — Free Practice Questions

10 free sample questions from a bank of 209, with the correct answers and explanations. No signup required — start practising right now.

1What is the maximum number of switches that can be stacked using Cisco StackWise?
  • 4
  • 5
  • 8
  • 9
  • 10
  • 13
Answer: D

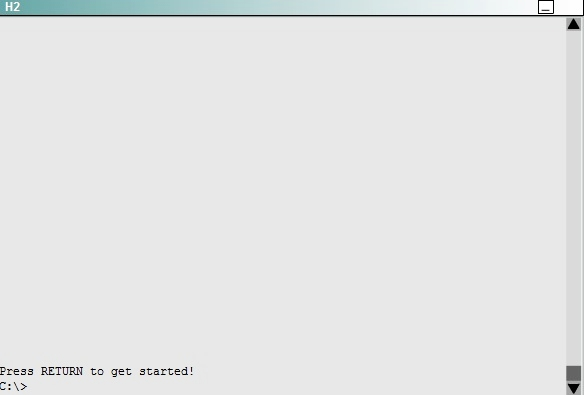

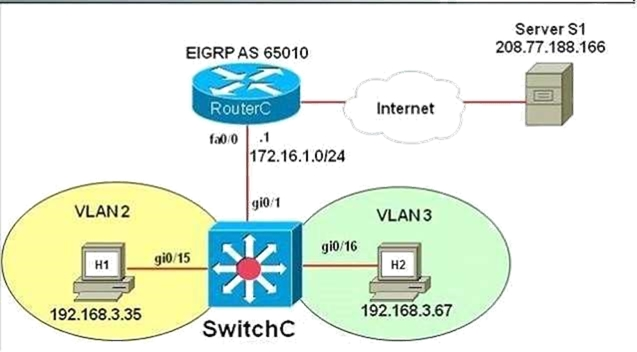

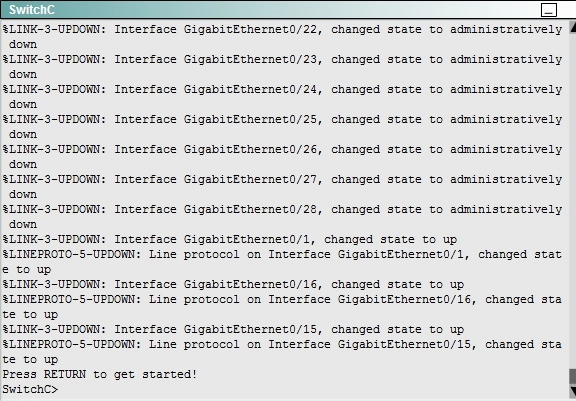

2SIMULATION - You have been tasked with configuring multilayer SwitchC, which has a partial configuration and has been attached to RouterC as shown in the topology diagram. You need to configure SwitchC so that Hosts H1 and H2 can successfully ping the server S1. Also SwitchC needs to be able to ping server S1. Due to administrative restrictions and requirements you should not add/delete vlans or create trunk links. Company policies forbid the use of static or default routing. All routes must be learned via EIGRP 65010 routing protocol. You do not have access to RouteC. RouterC is correctly configured. No trunking has been configured on RouterC. Routed interfaces should use the lowest host on a subnet when possible. The following subnets are available to implement this solution: 10.10.10.0/24 190.200.250.32/27 190.200.250.64/27 Hosts H1 and H2 are configured with the correct IP address and default gateway. SwitchC uses Cisco as the enable password. Routing must only be enabled for the specific subnets shown in the diagram. Note: Due to administrative restrictions and requirements you should not add or delete VLANs, changes VLAN port assignments or create trunks. Company policies forbid the use of static or default routing. All routes must be learned via the EIGRP routing protocol.
300-115 question 2300-115 question 2300-115 question 2300-115 question 2
    Answer:

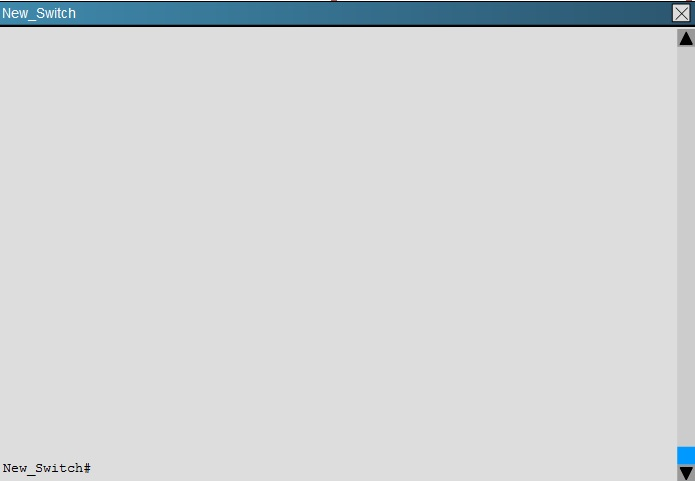

    3Instructions - ✑ Enter IOS commands on the device to verify network operation and answer the multiple-choice questions. ✑ THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION. ✑ Click on SW1, SW2, New_Switch or SW4 to gain access to the consoles of these devices. No console or enable passwords are required. ✑ To access the multiple-choice questions, click on the numbered boxes on the left of the top panel. ✑ There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button Scenario - You have been asked to install and configure a new switch in a customer network. Use the console access to the existing and new switches to configure and verify correct device configuration. Topology - You are adding new VLANs. VLAN500 and VLAN600 to the topology in such way that you need to configure SW1 as primary root for VLAN 500 and secondary for VLAN 600 and SW2 as primary root for VLAN 600 and secondary for VLAN 500. Which configuration step is valid?
    300-115 question 3300-115 question 3300-115 question 3300-115 question 3300-115 question 3
    • Configure VLAN 500 & VLAN 600 on both SW1 & SW2
    • Configure VLAN 500 and VLAN 600 on SW1 only
    • Configure VLAN 500 and VLAN 600 on SW2 only
    • Configure VLAN 500 and VLAN 600 on SW1 ,SW2 and SW4
    • On SW2; configure vtp mode as off and configure VLAN 500 and VLAN 600; configure back to vtp server mode.
    Answer: A

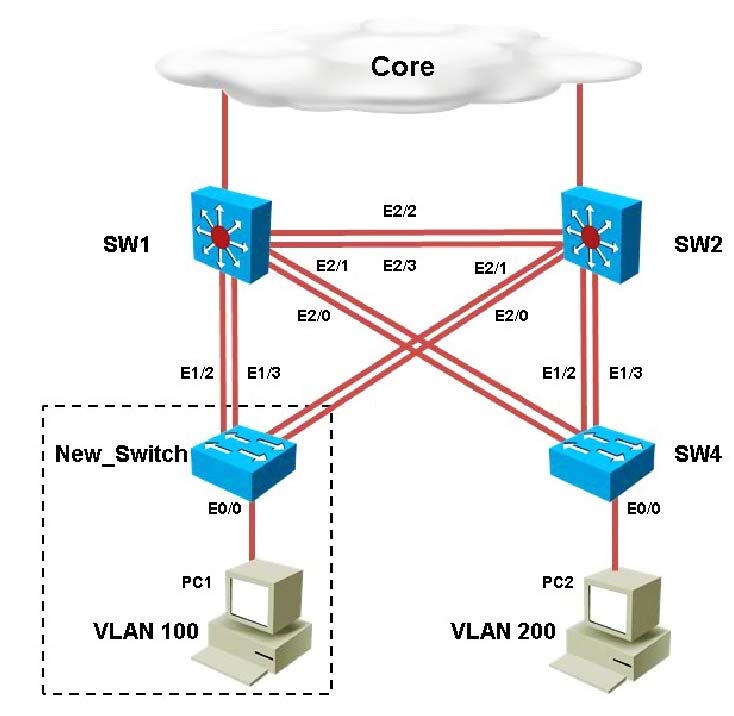

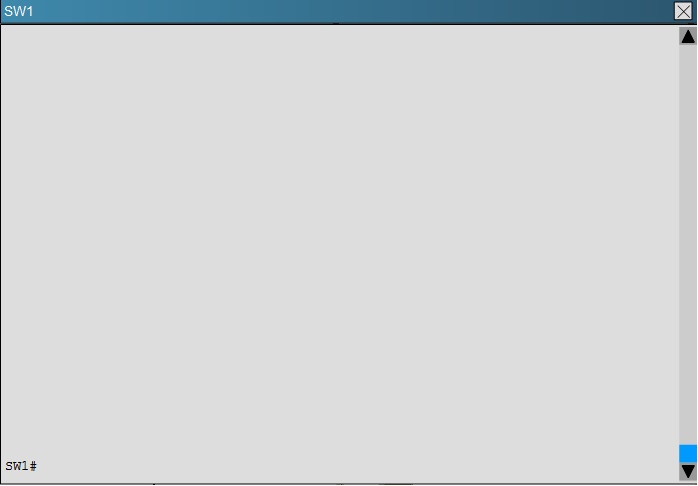

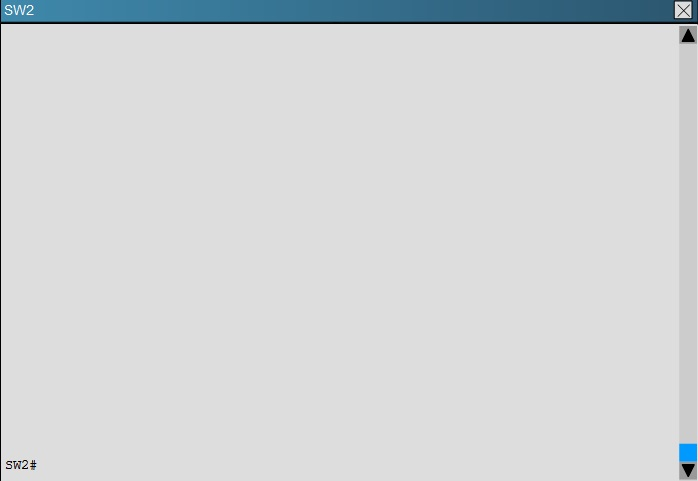

    4Instructions - ✑ Enter IOS commands on the device to verify network operation and answer the multiple-choice questions. ✑ THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION. ✑ Click on SW1, SW2, New_Switch or SW4 to gain access to the consoles of these devices. No console or enable passwords are required. ✑ To access the multiple-choice questions, click on the numbered boxes on the left of the top panel. ✑ There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button Scenario - You have been asked to install and configure a new switch in a customer network. Use the console access to the existing and new switches to configure and verify correct device configuration. Topology - Examine the VTP configuration. You are required to configure private VLANs for a new server deployment connecting to the SW4 switch. Which of the following configuration steps will allow creating private VLANs?
    300-115 question 4300-115 question 4300-115 question 4300-115 question 4300-115 question 4
    • Disable VTP pruning on SW1 only
    • Disable VTP pruning on SW2 only
    • Disable VTP pruning on SW4 only
    • Disable VTP pruning on SW2, SW4 and New_Switch
    • Disable VTP pruning on New_Switch and SW4 only.
    Answer: C
    5An access switch has been configured with an EtherChannel port. After configuring SPAN to monitor this port, the network administrator notices that not all traffic is being replicated to the management server. What is a cause for this issue?
    • VLAN filters are required to ensure traffic mirrors effectively.
    • SPAN encapsulation replication must be enabled to capture EtherChannel destination traffic.
    • The port channel can be used as a SPAN source, but not a destination.
    • RSPAN must be used to capture EtherChannel bidirectional traffic.
    Answer: C
    6Which technique allows specific VLANs to be strictly permitted by the administrator?
    • VTP pruning
    • transparent bridging
    • trunk allowed VLANs
    • VLAN access-list
    • L2P tunneling
    Answer: C
    7A network engineer is extending a LAN segment between two geographically separated data centers. Which enhancement to a spanning-tree design prevents unnecessary traffic from crossing the extended LAN segment?
    • Modify the spanning-tree priorities to dictate the traffic flow.
    • Create a Layer 3 transit VLAN to segment the traffic between the sites.
    • Use VTP pruning on the trunk interfaces.
    • Configure manual trunk pruning between the two locations.
    Answer: C
    8When you design a switched network using VTPv2, how many VLANs can be used to carry user traffic?
    • 1000
    • 1001
    • 1024
    • 2048
    • 4095
    • 4096
    Answer: B
    9What does the command vlan dot1q tag native accomplish when configured under global configuration?
    • All frames within the native VLAN are tagged, except when the native VLAN is set to 1.
    • It allows control traffic to pass using the non-default VLAN.
    • It removes the 4-byte dot1q tag from every frame that traverses the trunk interface(s).
    • Control traffic is tagged.
    Answer: D
    10Which statement about Cisco Discovery Protocol configuration on a Cisco switch is true?
    • CDP is enabled by default and can be disabled globally with the command no cdp run.
    • CDP is disabled by default and can be enabled globally with the command cdp enable.
    • CDP is enabled by default and can be disabled globally with the command no cdp enable.
    • CDP is disabled by default and can be enabled globally with the command cdp run.
    Answer: A
