200-105 — Free Practice Questions

10 free sample questions from a bank of 168, with the correct answers and explanations. No signup required — start practising right now.

1Which Cisco platform can verify ACLs?
  • Cisco Prime Infrastructure
  • Cisco Wireless LAN Controller
  • Cisco APIC-EM
  • Cisco IOS-XE
Answer: A
2Which encapsulation type is a Frame Relay encapsulation type that is supported by Cisco routers?
  • IETF
  • ANSI Annex D
  • Q9333-A Annex A
  • HDLC
Answer: A
3The internetwork infrastructure of company XYZ consists of a single OSPF area as shown in the graphic. There is concern that a lack of router resources is impeding internetwork performance. As part of examining the router resources, the OSPF DRs need to be known. All the router OSPF priorities are at the default and the router IDs are shown with each router. Which routers are likely to have been elected as DR? (Choose two.)
  • Corp-1
  • Corp-2
  • Corp-3
  • Corp-4
  • Branch-1
  • Branch-2
Answer:
4Which statement about QoS default behavior is true?
  • Ports are untrusted by default.
  • VoIP traffic is passed without being tagged.
  • Video traffic is passed with a well-known DSCP value of 46.
  • Packets are classified internally with an environment.
  • Packets that arrive with a tag are untagged at the edge of an administrative domain.
Answer: A

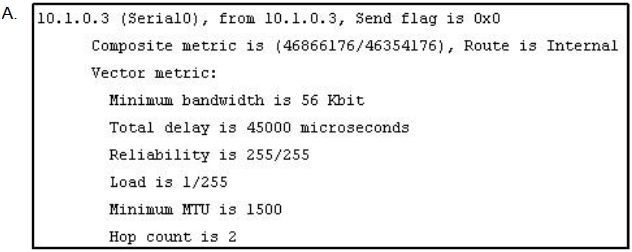

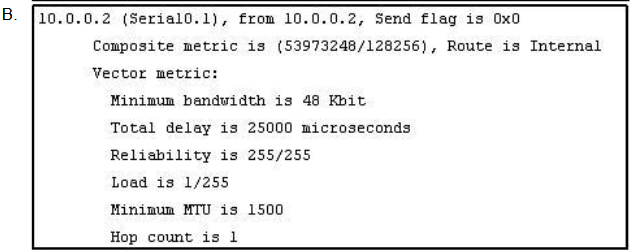

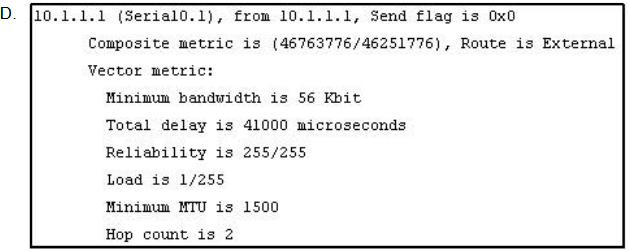

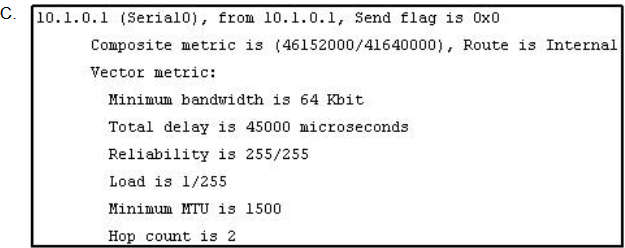

5Refer to the exhibit. Given the output from the show ip eigrp topology command, which router is the feasible successor? A. B. C. D.
200-105 question 5200-105 question 5200-105 question 5200-105 question 5200-105 question 5
    Answer:
    6Which three of these statements regarding 802.1Q trunking are correct? (Choose three.)
    • 802.1Q native VLAN frames are untagged by default.
    • 802.1Q trunking ports can also be secure ports.
    • 802.1Q trunks can use 10 Mb/s Ethernet interfaces.
    • 802.1Q trunks require full-duplex, point-to-point connectivity.
    • 802.1Q trunks should have native VLANs that are the same at both ends.
    Answer:
    7Which two options are valid WAN connectivity methods? (Choose two.)
    • PPP
    • WAP
    • DSL
    • L2TPv3
    • Ethernet
    Answer:

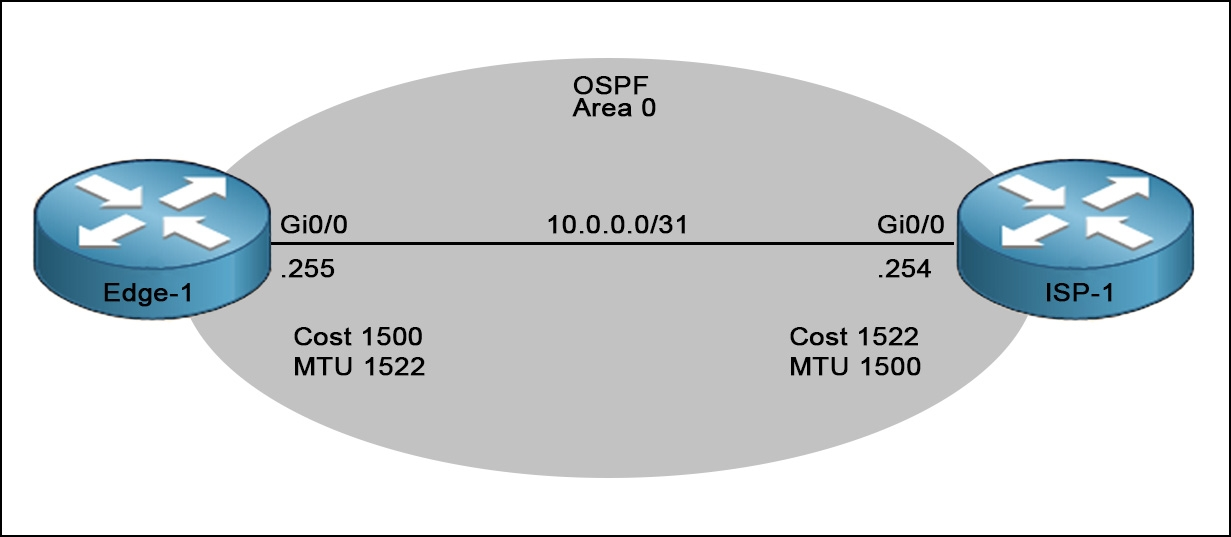

    8Refer to the exhibit. Router edge-1 is unable to establish OSPF neighbor adjacency with router ISP-1. Which two configuration changes can you make on edge-1 to allow the two routers to establish adjacency? (Choose two.)
    200-105 question 8
    • Set the subnet mask on edge-1 to 255.255.255.252.
    • Reduce the MTU on edge-1 to 1514.
    • Set the OSPF cost on edge-1 to 1522.
    • Reduce the MTU on edge-1 to 1500.
    • Configure the ip ospf mtu-ignore command on the edge-1 Gi0/0 interface.
    Answer:

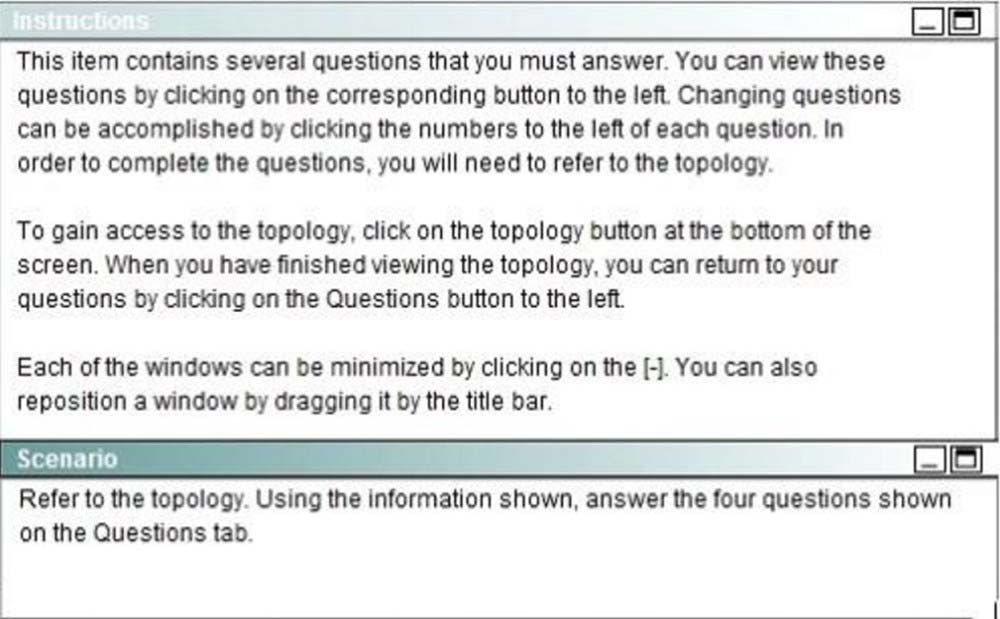

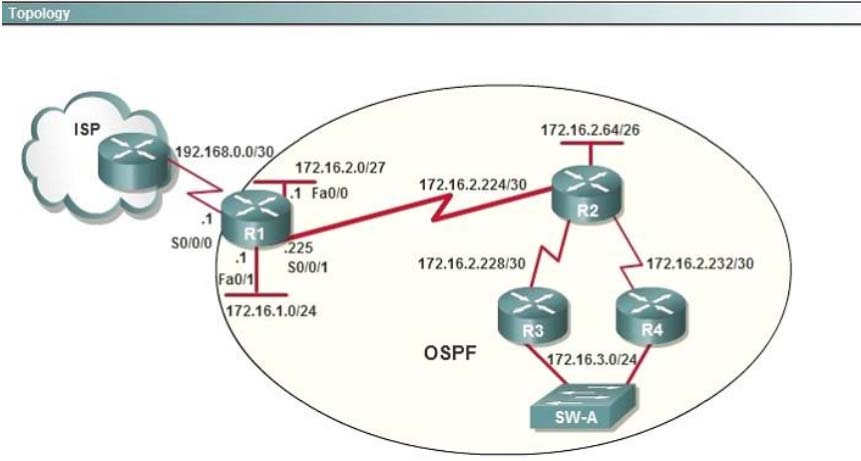

    9R1 is configured with the default configuration of OSPF. From the following list of IP addresses configured on R1, which address will the OSPF process select as the router ID?
    200-105 question 9200-105 question 9
    • 192.168.0.1
    • 172.16.1.1
    • 172.16.2.1
    • 172.16.2.225
    Answer: A

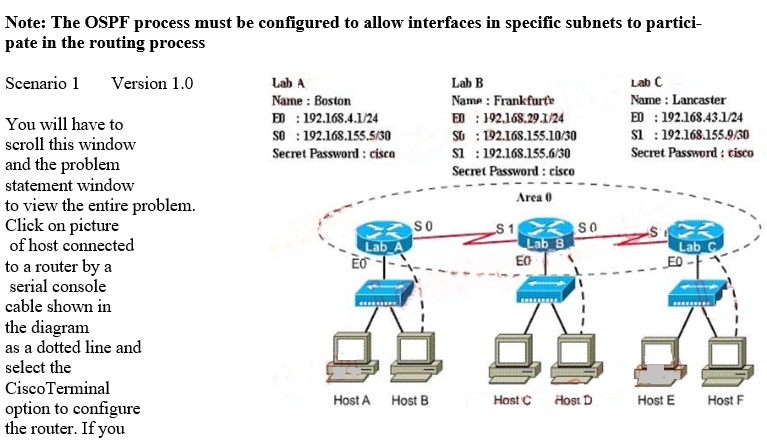

    10SIMULATION - Lab OSPF - A sporting goods manufacturer has decided to network three (3) locations to improve efficiency in inventory control. The routers have been named to reflect the location: Boston, Frankfurt, Lancaster. The necessary networking has been completed at each location, and the routers have been configured with single area OSPF as the routing protocol. The Lancaster router was recently installed but connectivity is not complete because of incomplete routing tables. Identify and correct any problem you see in the configuration. Note: The OSPF process must be configured to allow interfaces in specific subnets to participate in the routing process.
    200-105 question 10
      Answer:
